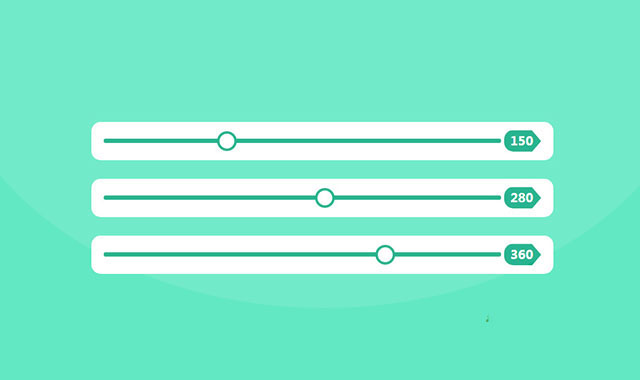

这是一款jquery和CSS3简洁滑块设计效果。该滑块通过CSS3进行布局,然后通过简单的jquery代码来在用户拖动滑块时,获取相应的数值。

使用方法

在页面中引入下面的文件。

<link rel="stylesheet" type="text/css" href="css/bootstrap.min.css" />
<script src="js/jquery.min.js" type="text/javascript"></script>

HTML结构

滑块的HTML结果如下:

<div class="container">
    <div class="row pad-15">
        <div class="col-md-offset-2 col-md-8">
            <div class="range-slider">
                <input type="range" value="150" min="0" max="500">
                <span class="range-value">0</span>
            </div>

            <div class="range-slider">
                <input type="range" value="280" min="0" max="500">
                <span class="range-value">0</span>
            </div>

            <div class="range-slider">
                <input type="range" value="360" min="0" max="500">
                <span class="range-value">0</span>
            </div>
        </div>
    </div>
</div>

CSS样式

然后为滑块添加下面的CSS样式。

:root{
    --white: #fff;
    --main-color: #10ac84;
}
.demo{ background-color: #63e8c4; padding: 2em 0}
.range-slider{
    background-color: var(--white);
    border-radius: 15px;
    padding: 27px 0 0 20px;
    margin: 30px 0 0 0;
}
.range-slider input[type="range"]{
    background: var(--main-color);
    width: calc(100% - (85px));
    height: 7px;
    border-radius: 5px;
    outline: none;
    float: left;
    -webkit-appearance: none;
    position: relative;
}
.range-slider input[type="range"]::-webkit-slider-thumb{
    background: var(--white);
    width: 32px;
    height: 32px;
    border: 4px solid var(--main-color);
    border-radius: 50%;
    cursor: pointer;
    transition: all 0.15s ease-in-out 0s;
    -webkit-appearance: none;
    appearance: none;
}
.range-slider input[type="range"]::-webkit-slider-thumb:hover,
.range-slider input[type="range"]:active::-webkit-slider-thumb{
    box-shadow: 0 0 0 2px var(--white), 0 0 10px #000;
}
.range-slider input[type="range"]::-moz-range-thumb{
    background: var(--white);
    width: 25px;
    height: 25px;
    cursor: pointer;
    border: 4px solid var(--main-color);
    border-radius: 50%;
    transition: all 0.15s ease-in-out 0s;
}
.range-slider input[type="range"]::-moz-range-thumb:hover,
.range-slider input[type="range"]:active::-moz-range-thumb{
    box-shadow: 0 0 0 2px var(--white), 0 0 10px #000;
}
.range-slider .range-value{
    color: var(--white);
    background: var(--main-color);
    font-size: 20px;
    font-weight: 600;
    text-align: center;
    line-height: 35px;
    width: 60px;
    height: 35px;
    padding: 0 15px 0 10px;
    margin-left: 5px;
    border-radius: 15px;
    display: inline-block;
    position: relative;
    top: -14px;
    -webkit-clip-path: polygon(0% 0%, 75% 0%, 100% 50%, 75% 100%, 0% 100%);
    clip-path: polygon(0% 0%, 75% 0%, 100% 50%, 75% 100%, 0% 100%);
}
::-moz-range-track{
    background: transparent;
    border: 0;
}

Javascript

最后,添加下面的jquery代码,来在用户拖动滑块时,获取相应的数值。

$(document).ready(function(){
    var rangeSlider = function(){
        var slider = $('.range-slider'),
            range = $('.range-slider input[type="range"]'),
            value = $('.range-value');
        slider.each(function(){
            value.each(function(){
                var value = $(this).prev().attr('value');
                $(this).html(value);
            });
            range.on('input', function(){
                $(this).next(value).html(this.value);
            });
        });
    };
    rangeSlider();
});
