flex 弹性布局
一. flex 解释
1、flex 布局 为 flexible BOX 的缩写 ，意思为 弹性布局。
2、块级元素和行内块级元素都可以使用flex布局
3、Webkit内核的浏览器，需要加上-webkit前缀。
二. flex 容器 属性

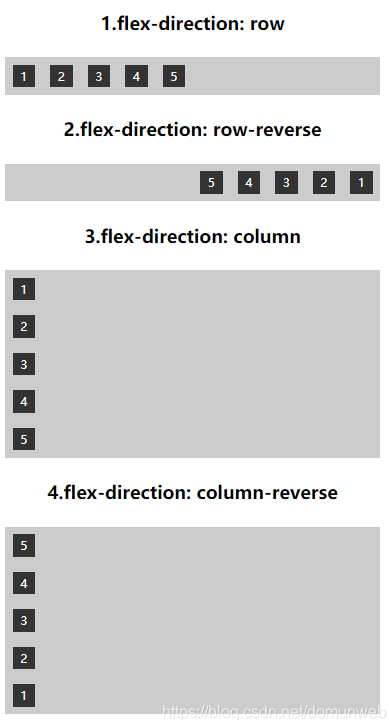

1、flex-direction
此属性决定主轴的方向
.flex{
flex-direction: row; // (默认值) 主轴水平方向，从左往右 如图：
flex-direction: row-reverse; // 主轴水平方向的逆方向，从右往左
flex-direction: column; // 主轴为垂直方向，从上往下
flex-direction: column-reverse; // 主轴为垂直方向的逆方向，从下往上
}
2、flex-wrap
此属性定义，如果一条轴线上排列不下，换行的方式
.flex{
flex-wrap: nowrap; // （默认）不换行 如图:
flex-wrap: wrap; // 正常换行 从上到下 如图：
flex-wrap: wrap-reverse; // 逆方向换行 从下到上 如图：
}
3、flex-flow
此属性定义，是flex-direction和flex-wrap的方式；
.flex {
flex-flow: <flex-direction> 空格 <flex-wrap>;
}
4、justify-content
此属性定义，项目在主轴上的对齐方式
.flex{
justify-content: flex-start; // 左对齐（默认）
justify-content: flex-end; // 右对齐
justify-content: center; // 居中
justify-content: space-between; // 两端对齐。且项目间间隔相等
justify-content: space-around; // 每个项目两侧间隔相等，所以项目间 间隔 比项目与边框间间隔大一倍
justify-content: space-evenly; // 项目间间隔与项目与边框间 间隔均匀分配
}
4、align-items
此属性定义，项目在交叉轴上的对齐方式
.flex{
align-items: flex-start; // 交叉轴的起点对齐
align-items: flex-end; // 交叉轴的终点对齐
align-items:center; // 交叉轴的中点对齐
align-items: baseline; // 项目的第一行文字的基线对齐
align-items: stretch; // (默认值) 如果项目未设置高度或设为auto ，将充满整父级容器高度
}
5、align-content
此属性定义，多个项目多根轴线的对齐方式，只有一个轴线时没有作用
.flex{
align-content: flex-start; // 与交叉轴的起点对齐。
align-content: flex-end：// 与交叉轴的终点对齐。
align-content: center：// 与交叉轴的中点对齐。
align-content: space-between：// 与交叉轴两端对齐，轴线之间的间隔平均分布。
align-content: space-around：// 每根轴线两侧的间隔都相等。所以，轴线之间的间隔比轴线与边框的间隔大一倍。
align-content: stretch; // （默认值）轴线占满整个交叉轴。
}
以上的属性都是容器的属性
三. flex 项目 属性
1、order
此属性决定项目的排列顺序，数值越小。排列越靠前。
.box{
order: number; // 默认为 0 ,要讲哪个项目向前移动 将其order设置为负数。
}

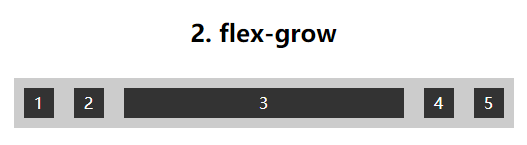

2、flex-grow
此属性决定项目的放大比列。
.box{
flex-grow: 5; // 默认为 0
}

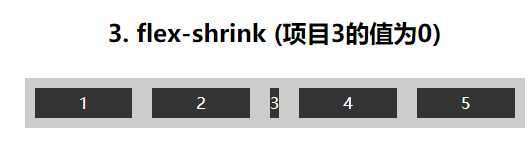

3、flex-shrink
此属性决定项目的缩小比列。
.item {
flex-shrink: number; // 默认为1.要将哪个项目缩小 值设为0 ；
}
3、flex-basis
此属性定义 在分配多余空间之前，项目占据的主轴空间（main size）。浏览器根据这个属性，计算主轴是否有多余空间。它的默认值为auto，即项目的本来大小。
4、flex
此属性定义为 flex-grow, flex-shrink 和 flex-basis的简写，默认值为0 1 auto。后两个属性可选。
.item{
flex: flex-grow flex-shrink flex-basis; // 简写方式
}
5、align-self
此属性允许单个项目有与其他项目不一样的对齐方式，可覆盖align-items属性。默认值为auto，表示继承父元素的align-items属性，如果没有父元素，则等同于stretch。
.item{
align-self: auto;
align-self: flex-start;
align-self: flex-end;
align-self: center;
align-self: baseline;
align-self: stretch;
}
演示html
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<title>flex布局</title>
<style>
h2 {
text-align: center;
}
.flex {
width: 500px;
margin: 30px auto;
background: #cccccc;
}
.box {
width: 30px;
height: 30px;
margin: 10px;
background: #333;
text-align: center;
line-height: 30px;
color: #fff;
}
.flex1 {
display: flex;
flex-direction: row;
}
.flex2 {
display: flex;
flex-direction: row-reverse;
}
.flex3 {
display: flex;
flex-direction: column;
}
.flex4 {
display: flex;
flex-direction: column-reverse;
}
.flex5 {
display: flex;
flex-wrap: nowrap;
}
.flex6 {
display: flex;
flex-wrap: wrap;
}
.flex7 {
display: flex;
flex-wrap: wrap-reverse;
}
.flex8 {
display: flex;
justify-content: flex-start;
}
.flex9 {
display: flex;
justify-content: flex-end;
}
.flex10 {
display: flex;
justify-content: center;
}
.flex11 {
display: flex;
justify-content: space-between;
}
.flex12 {
display: flex;
justify-content: space-around;
}
.flex13 {
display: flex;
justify-content: space-evenly;
}
.flex14 {
display: flex;
justify-content: space-evenly;
align-items: flex-start;
}
.flex15 {
display: flex;
justify-content: space-evenly;
align-items: flex-end;
}
.flex16 {
display: flex;
justify-content: space-evenly;
align-items: center;
}
.flex17 {
display: flex;
justify-content: space-evenly;
align-items: baseline;
}
.flex18 {
display: flex;
justify-content: space-evenly;
align-items: stretch;
}
.flex19 {
display: flex;
height: 240px;
flex-wrap: wrap;
align-content: flex-start;
}
.flex20 {
display: flex;
height: 240px;
flex-wrap: wrap;
align-content: flex-end;
}
.flex21 {
height: 240px;
display: flex;
flex-wrap: wrap;
align-content: center;
}
.flex22 {
height: 240px;
display: flex;
flex-wrap: wrap;
align-content: space-between;
}
.flex23 {
height: 240px;
display: flex;
flex-wrap: wrap;
align-content: space-around;
}
.flex24 {
height: 240px;
display: flex;
flex-wrap: wrap;
align-content: stretch;
}
.flex25 {
display: flex;
flex-direction: row;
}
.flex25>.box5 {
order: -5;
}
.flex26 {
display: flex;
flex-direction: row;
}
.flex26>.box3 {
flex-grow: 3;
}
.flex27 {
display: flex;
flex-direction: row;
}
.flex27>.box {
flex: 1;
}
.flex27>.box3 {
flex: 0;
}
.flex28 {
height: 150px;
display: flex;
justify-content: space-evenly;
}
.flex28>.box3{
align-items: auto;
}
.flex29 {
height: 150px;
display: flex;
justify-content: space-evenly;
}
.flex29>.box3{
align-self: flex-start;
}
.flex30 {
height: 150px;
display: flex;
justify-content: space-evenly;
}
.flex30>.box3{
align-self: flex-end;
}
.flex31 {
height: 150px;
display: flex;
justify-content: space-evenly;
}
.flex31>.box3{
align-self: center;
}
.flex32 {
height: 150px;
display: flex;
justify-content: space-evenly;
}
.flex32>.box3{
line-height: 50px;
align-self: baseline;
}
</style>
</head>
<body>
<h2>1.flex-direction: row</h2>
<div class="flex flex1">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>2.flex-direction: row-reverse</h2>
<div class="flex flex2">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>3.flex-direction: column</h2>
<div class="flex flex3">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>4.flex-direction: column-reverse</h2>
<div class="flex flex4">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>5.flex-wrap: nowrap</h2>
<div class="flex flex5">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
</div>
<h2>6.flex-wrap: wrap</h2>
<div class="flex flex6">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
</div>
<h2>7.flex-wrap: wrap-reverse</h2>
<div class="flex flex7">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
<div>5</div>
</div>
<h2>8.justify-content: flex-start</h2>
<div class="flex flex8">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>9.justify-content: flex-end</h2>
<div class="flex flex9">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>10.justify-content: center</h2>
<div class="flex flex10">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>11.justify-content: space-between</h2>
<div class="flex flex11">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>12.justify-content: space-around</h2>
<div class="flex flex12">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>13.justify-content: space-evenly</h2>
<div class="flex flex13">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
</div>
<h2>14.align-items: flex-start</h2>
<div class="flex flex14">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
</div>
<h2>15.align-items: flex-end</h2>
<div class="flex flex15">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
</div>
<h2>16.align-items: center</h2>
<div class="flex flex16">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
</div>
<h2>17.align-items: baseline</h2>
<div class="flex flex17">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
</div>
<h2>18.align-items: stretch</h2>
<div class="flex flex18">
<div style="height: auto">1</div>
<div style="height: auto">2</div>
<div style="height: auto">3</div>
<div style="height: auto">4</div>
<div style="height: auto">5</div>
</div>
<h2>19.align-content: flex-start</h2>
<div class="flex flex19">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
<div style="height: 25px">6</div>
<div style="height: 40px">7</div>
<div style="height: 50px">8</div>
<div style="height: 60px">9</div>
<div style="height: 55px">10</div>
<div style="height: 25px">11</div>
<div style="height: 40px">12</div>
<div style="height: 50px">13</div>
<div style="height: 60px">14</div>
<div style="height: 55px">15</div>
</div>
<h2>20.align-content: flex-end</h2>
<div class="flex flex20">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
<div style="height: 25px">6</div>
<div style="height: 40px">7</div>
<div style="height: 50px">8</div>
<div style="height: 60px">9</div>
<div style="height: 55px">10</div>
<div style="height: 25px">11</div>
<div style="height: 40px">12</div>
<div style="height: 50px">13</div>
<div style="height: 60px">14</div>
<div style="height: 55px">15</div>
</div>
<h2>21.align-content: center</h2>
<div class="flex flex21">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
<div style="height: 25px">6</div>
<div style="height: 40px">7</div>
<div style="height: 50px">8</div>
<div style="height: 60px">9</div>
<div style="height: 55px">10</div>
<div style="height: 25px">11</div>
<div style="height: 40px">12</div>
<div style="height: 50px">13</div>
<div style="height: 60px">14</div>
<div style="height: 55px">15</div>
</div>
<h2>22.align-content: space-between</h2>
<div class="flex flex22">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
<div style="height: 25px">6</div>
<div style="height: 40px">7</div>
<div style="height: 50px">8</div>
<div style="height: 60px">9</div>
<div style="height: 55px">10</div>
<div style="height: 25px">11</div>
<div style="height: 40px">12</div>
<div style="height: 50px">13</div>
<div style="height: 60px">14</div>
<div style="height: 55px">15</div>
</div>
<h2>23.align-content: space-around</h2>
<div class="flex flex23">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
<div style="height: 25px">6</div>
<div style="height: 40px">7</div>
<div style="height: 50px">8</div>
<div style="height: 60px">9</div>
<div style="height: 55px">10</div>
<div style="height: 25px">11</div>
<div style="height: 40px">12</div>
<div style="height: 50px">13</div>
<div style="height: 60px">14</div>
<div style="height: 55px">15</div>
</div>
<h2>24.align-content: stretch</h2>
<div class="flex flex24">
<div style="height: 25px">1</div>
<div style="height: 40px">2</div>
<div style="height: 50px">3</div>
<div style="height: 60px">4</div>
<div style="height: 55px">5</div>
<div style="height: 25px">6</div>
<div style="height: 40px">7</div>
<div style="height: 50px">8</div>
<div style="height: 60px">9</div>
<div style="height: 55px">10</div>
<div style="height: 25px">11</div>
<div style="height: 40px">12</div>
<div style="height: 50px">13</div>
<div style="height: 60px">14</div>
<div style="height: 55px">15</div>
</div>
<h2>1. order (项目5的order值为 -1)</h2>
<div class="flex flex25">
<div class="box box1">1</div>
<div class="box box2">2</div>
<div class="box box3">3</div>
<div class="box box4">4</div>
<div class="box box5">5</div>
</div>
<h2>2. flex-grow (项目3的值为3)</h2>
<div class="flex flex26">
<div class="box box1">1</div>
<div class="box box2">2</div>
<div class="box box3">3</div>
<div class="box box4">4</div>
<div class="box box5">5</div>
</div>
<h2>3. flex-shrink (项目3的值为0)</h2>
<div class="flex flex27">
<div class="box box1">1</div>
<div class="box box2">2</div>
<div class="box box3">3</div>
<div class="box box4">4</div>
<div class="box box5">5</div>
</div>
<h2>4. align-self: auto</h2>
<div class="flex flex28">
<div class="box box1" style="height: 25px">1</div>
<div class="box box2" style="height: 40px">2</div>
<div class="box box3" style="height: 50px">3</div>
<div class="box box4" style="height: 60px">4</div>
<div class="box box5" style="height: 55px">5</div>
</div>
<h2>5. align-self: flex-start</h2>
<div class="flex flex29">
<div class="box box1" style="height: 25px">1</div>
<div class="box box2" style="height: 40px">2</div>
<div class="box box3" style="height: 50px">3</div>
<div class="box box4" style="height: 60px">4</div>
<div class="box box5" style="height: 55px">5</div>
</div>
<h2>6. align-self: flex-end</h2>
<div class="flex flex30">
<div class="box box1" style="height: 25px">1</div>
<div class="box box2" style="height: 40px">2</div>
<div class="box box3" style="height: 50px">3</div>
<div class="box box4" style="height: 60px">4</div>
<div class="box box5" style="height: 55px">5</div>
</div>
<h2>7. align-self: center</h2>
<div class="flex flex31">
<div class="box box1" style="height: 25px">1</div>
<div class="box box2" style="height: 40px">2</div>
<div class="box box3" style="height: 50px">3</div>
<div class="box box4" style="height: 60px">4</div>
<div class="box box5" style="height: 55px">5</div>
</div>
<h2>8. align-self: baseline</h2>
<div class="flex flex32">
<div class="box box1" style="height: 25px">1</div>
<div class="box box2" style="height: 40px">2</div>
<div class="box box3" style="height: 50px">3</div>
<div class="box box4" style="height: 60px">4</div>
<div class="box box5" style="height: 55px">5</div>
</div>
</body>
</html>
