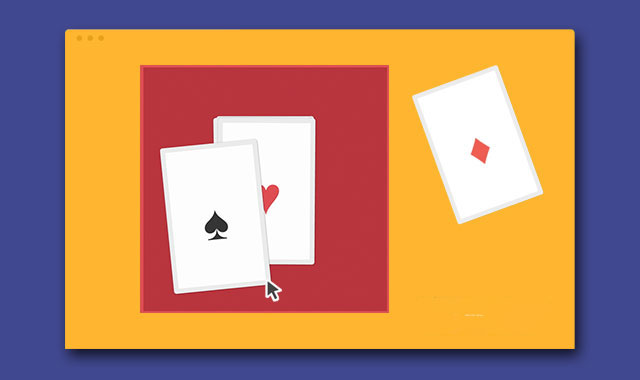

swing是一款拖动和拖拽卡片的交互动画接口。它可以将容器中的卡片元素拖动到容器外部,并在拖动时代有非常酷的弹性摇摆动画效果。可以通过下面的gif图片来预览一下效果。
HTML结构
html结构使用一个无序列表来作为图片栈,它被包裹在一个作为容器的div中。
- ♣
- ♦
- ♥
- ♠
JAVASCRIPT
var stack, cards; // Prepare the cards in the stack for iteration. cards = [].slice.call(document.querySelectorAll('ul li')) // An instance of the Stack is used to attach event listeners. stack = Swing.Stack(); cards.forEach(function (targetElement) { // Add card element to the Stack. stack.createCard(targetElement); }); // Add event listener for when a card is thrown out of the stack. stack.on('throwout', function (e) { // e.target Reference to the element that has been thrown out of the stack. // e.throwDirection Direction in which the element has been thrown (Card.DIRECTION_LEFT, Card.DIRECTION_RIGHT). console.log('Card has been thrown out of the stack.'); console.log('Throw direction: ' + (e.throwDirection == Card.DIRECTION_LEFT ? 'left' : 'right')); }); // Add event listener for when a card is thrown in the stack, including the spring back into place effect. stack.on('throwin', function (e) { console.log('Card has snapped back to the stack.'); });
配置
var stack, config; config = { /** * Invoked in the event of dragmove. * Returns a value between 0 and 1 indicating the completeness of the throw out condition. * Ration of the absolute distance from the original card position and element width. * * @param {Number} offset Distance from the dragStart. * @param {HTMLElement} element Element. * @return {Number} */ throwOutConfidence: function (offset, element) { return Math.min(Math.abs(offset) / element.offsetWidth, 1); } }; stack = stack = Swing.Stack(config);
名称 | 描述 | 默认值 |
isThrowOut | Invoked in the event of dragend. Determines if element is being thrown out of the stack. | Element is considered to be thrown out when throwOutConfidence is equal to 1. |
throwOutConfidence | Invoked in the event of dragmove. Returns a value between 0 and 1 indicating the completeness of the throw out condition. | Ration of the absolute distance from the original card position and element width. |
throwOutDistance | Invoked when card is added to the stack. The card is thrown to this offset from the stack. | The value is a random number between minThrowOutDistance and maxThrowOutDistance. |
minThrowOutDistance | In effect when throwOutDistance is not overwritten. | 450 |
maxThrowOutDistance | In effect when throwOutDistance is not overwritten. | 500 |
rotation | Invoked in the event of dragmove. Determine the rotation of the element. | Rotation is equal to the proportion of horizontal and vertical offset times the maximumRotation constant. |
maxRotation | In effect when rotation is not overwritten. | 20 |
transform | Invoked in the event of dragmove and every time the physics solver is triggered. | Uses CSS transform to translate element position and rotation. |
所有的配置参数都是可选的。
方法
var stack, card; stack = stack = Swing.Stack(); card = stack.createCard(HTMLElement);
名称 | 描述 |
stack.createCard(element) | 创建一个和元素相关联的卡片实例。 |
stack.getCard(element) | 返回卡片相关联的元素。 |
stack.on(event, listener) | 为栈添加一个事件监听。 |
card.on(event, listener) | 为卡片添加一个事件监听。 |
card.throwIn(x, y) | 从任意位置将卡片拖拽回栈中。x和y是开始抛出的位置。 |
card.throwOut(x, y) | 将卡片拖拽到栈外任意位置。x和y是开始抛出的位置。 |
card.destroy() | 销毁卡片。 |
将卡片拖拽到容器外
可以使用card.throwOut(x, y)方法来将卡片拖拽到容器外。你可已设置卡片的拖拽方向,例如:
card.throwOut(Card.DIRECTION_LEFT, 0); card.throwOut(Card.DIRECTION_RIGHT, 0);
如果想各种拖拽行为各不相同,可以把y参数设置为一个随机值。
事件监听
事件监听可以使用 on 方法附加到Swing.Stack或Swing.Card上。
var stack, card; stack = stack = Swing.Stack(); card = stack.createCard(HTMLElement); card.on('throwout', function () {}); stack.on('throwout', function () {});
名称 | 描述 |
throwout | When card has been thrown out of the stack. |
throwoutend | When card has been thrown out of the stack and the animation has ended. |
throwoutleft | Shorthand for throwout event in the Card.DIRECTION_LEFT direction. |
throwoutright | Shorthand for throwout event in the Card.DIRECTION_RIGHT direction. |
throwin | When card has been thrown into the stack. |
throwinend | When card has been thrown into the stack and the animation has ended. |
dragstart | drag start. |
dragmove | drag move. |
dragend | drag end. |
事件对象
事件侦听器是用一个参数eventobject调用:
var stack; stack = stack = Swing.Stack(); stack.on('throwout', function (eventObject) {});
名称 | 描述 |
target | The element being dragged. |
direction | The direction in which the element is being dragged: Card.DIRECTION_LEFT or Card.DIRECTION_RIGHT |
throwOutConfidence | A value between 0 and 1 indicating the completeness of the throw out condition. |
更多资料请参考:https://github.com/gajus/swing
