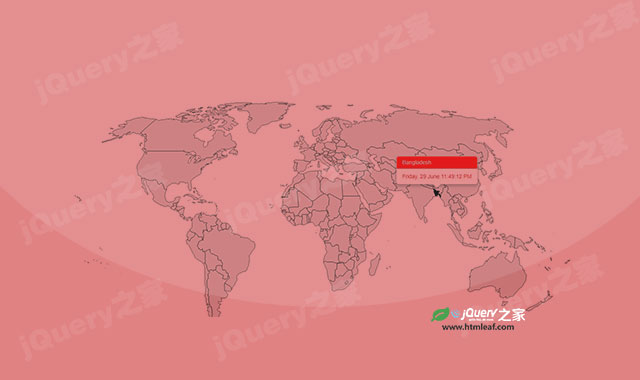

这是一款基于SVG带日期和地区提示的jQuery世界地图。该jQuery世界地图使用SVG来制作地图,在鼠标hover地区上的区域时,会显示该地区的名称和当前时间。

使用方法

在页面中引入jquery和bootstrap相关文件,以及jquery.jclock.js文件。

<link rel="stylesheet" href="path/to/bootstrap.min.css">
<script src="path/to/jquery.min.js"></script>
<script src="path/to/bootstrap.min.js"></script>
<script src="path/to/jquery.jclock.js"></script>

HTML结构

在页面中通过svg引入世界地图。

<input type="hidden" class="jclock" />
    <?xml version="1.0" encoding="UTF-8" standalone="no"?>

    <svg
       xmlns:dc="http://purl.org/dc/elements/1.1/"
       xmlns:cc="http://creativecommons.org/ns#"
       xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
       xmlns:svg="http://www.w3.org/2000/svg"
       xmlns="http://www.w3.org/2000/svg"
       xmlns:sodipodi="http://sodipodi.sourceforge.net/DTD/sodipodi-0.dtd"
       xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape"
       enable_background="new 0 0 2000 1001"
       height="100%"
       pretty_print="False"
       style="stroke-linejoin: round; stroke:#000; fill: none;"
       version="1.1"
       viewBox="0 0 2000 1001"
       width="100%"
       id="svg2"
       inkscape:version="0.48.4 r9939"
       sodipodi:docname="world.svg">
      <sodipodi:namedview
         pagecolor="#ffffff"
         bordercolor="#666666"
         borderopacity="1"
         objecttolerance="10"
         <a href="https://www.jqueryscript.net/tags.php?/grid/">grid</a>tolerance="10"
         guidetolerance="10"
         inkscape:pageopacity="0"
         inkscape:pageshadow="2"
         inkscape:window-width="1920"
         inkscape:window-height="1137"
         id="namedview231"
         showgrid="false"
         inkscape:zoom="1.144"
         inkscape:cx="593.00732"
         inkscape:cy="460.46398"
         inkscape:window-x="1192"
         inkscape:window-y="118"
         inkscape:window-maximized="1"
         inkscape:current-layer="svg2" />
      <defs id="defs4">
      </defs>
      <metadata
         id="metadata8">
        <views
           id="views10">
          <view
             h="1001"
             padding="0"
             w="2000"
             id="view12">
            <proj
               flip="auto"
               id="robinson"
               lon0="100.0" />
            <bbox
               h="2233.1"
               w="5271.17"
               x="-2635.59"
               y="-1308.06"
               id="bbox15" />
          </view>
        </views>
        <rdf:RDF>
          <cc:Work
             rdf:about="">
            <dc:format>image/svg+xml</dc:format>
            <dc:type
               rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
            <dc:title />
          </cc:Work>
        </rdf:RDF>
      </metadata>
      <a class="country" id="+4.30" data-toggle="popover" data-container="body" title="Afghanistan" data-content="Some content inside the popover" data-placement="top">
      <path
         inkscape:connector-curvature="0"
         id="AF"
         data-name="Afghanistan"
         data-id="AF"
         d="m 1369.9,333.8 -5.4,0 -3.8,-0.5 -2.5,2.9 -2.1,0.7 -1.5,1.3 -2.6,-2.1 -1,-5.4 -1.6,-0.3 0,-2 -3.2,-1.5 -1.7,2.3 0.2,2.6 -0.6,0.9 -3.2,-0.1 -0.9,3 -2.1,-1.3 -3.3,2.1 -1.8,-0.8 -4.3,-1.4 -2.9,0 -1.6,-0.2 -2.9,-1.7 -0.3,2.3 -4.1,1.2 0.1,5.2 -2.5,2 -4,0.9 -0.4,3 -3.9,0.8 -5.9,-2.4 -0.5,8 -0.5,4.7 2.5,0.9 -1.6,3.5 2.7,5.1 1.1,4 4.3,1.1 1.1,4 -3.9,5.8 9.6,3.2 5.3,-0.9 3.3,0.8 0.9,-1.4 3.8,0.5 6.6,-2.6 -0.8,-5.4 2.3,-3.6 4,0 0.2,-1.7 4,-0.9 2.1,0.6 1.7,-1.8 -1.1,-3.8 1.5,-3.8 3,-1.6 -3,-4.2 5.1,0.2 0.9,-2.3 -0.8,-2.5 2,-2.7 -1.4,-3.2 -1.9,-2.8 2.4,-2.8 5.3,-1.3 5.8,-0.8 2.4,-1.2 2.8,-0.7 -1.4,-1.9 z"
         />
      </a>
      ......
</svg>

初始化插件

在页面DOM元素加载完毕,通过下面的方法来初始化该jQuery世界地图特效。

$(document).ready(function(){

  $(".country").hover(function(){

    var gmt_country = $(this).attr("id");
    // alert(gmt_country);
    var options = {
        format:'<span class=\"dt\">%A, %d %B %I:%M:%S %P</span>',
        timeNotation: '12h',
        am_pm: true,
        utc:true,
        utc_offset: gmt_country
      };
      $('.jclock').jclock(options);

      var country_time = $(".jclock").text();

      $(this).attr("data-content", country_time);

  });

  $('[data-toggle="popover"]').popover({ trigger: "hover" });

});



该jQuery世界地图特效的github地址为:https://github.com/hakikz/jquery-map-with-time-on-hover
